Lifa Chen Marine Propeller 24‑Year Propeller Manufacturer: Fix Heavy‑Load Poor‑Thrust Issue For Overseas Cargo Ship

Today I'd like to share a customer case from Ethiopia.

今天记录一个来自埃塞俄比亚的货船客户案例.

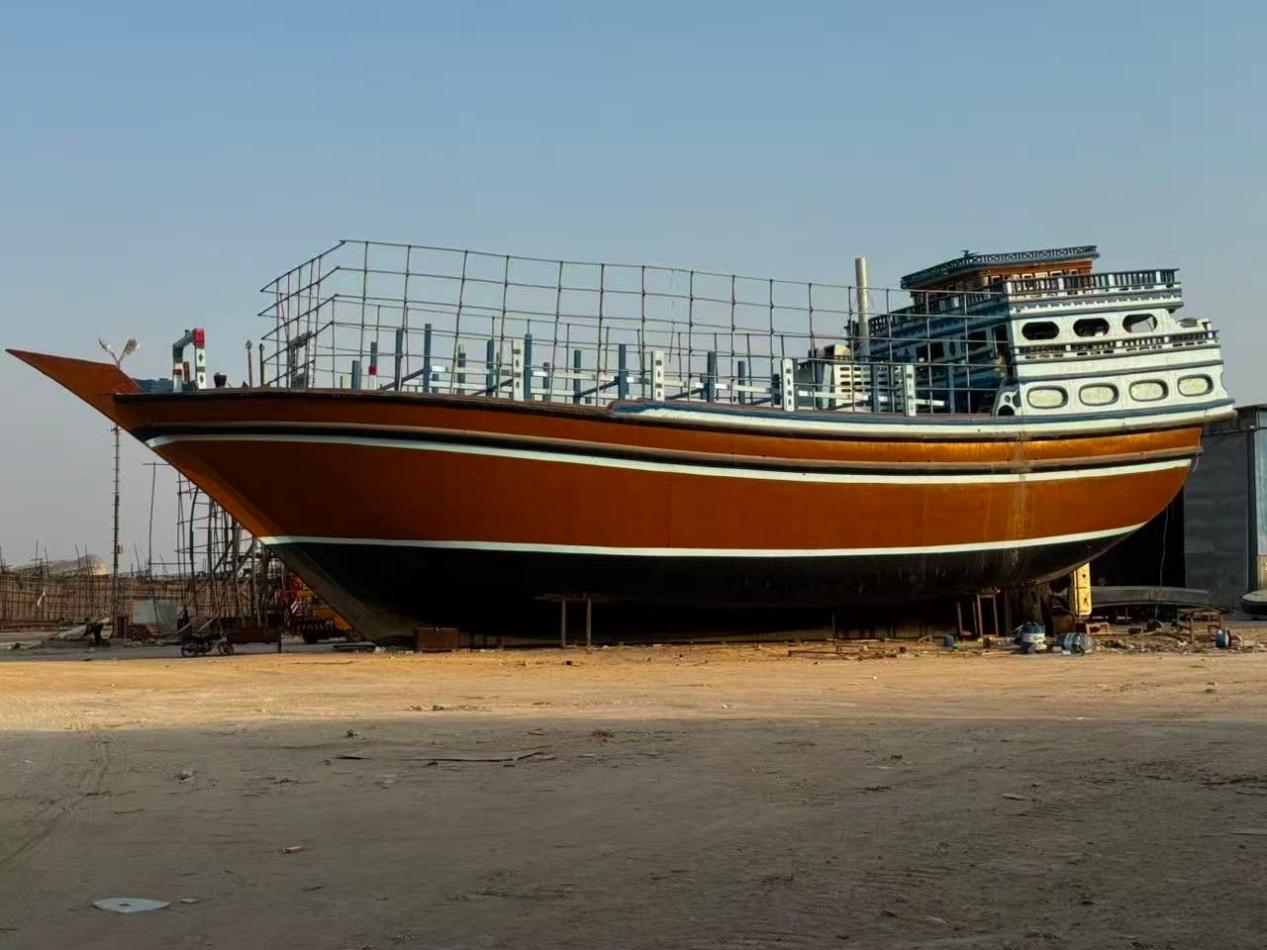

The customer owns a fiberglass cargo boat with a draft of 3–4 meters and a deadweight capacity of 250–300 tonnes, and needs a propeller and tail shaft set. The goods will be picked up in Weifang, Shandong, and shipped to Ethiopia. The boat's propulsion configuration is: one 600HP engine with a rated speed of 1800rpm, gearbox ratio 3:1, and a planned maximum operating speed of 1400–1500rpm. The shaft taper and shaft diameter have not yet been provided.

客户有一条玻璃钢货船,吃水 3~4 米,载重 250~300 吨,需要配套一套螺旋桨和艉轴,收货地在山东潍坊,之后出运到埃塞俄比亚.这条船的动力配置是 1 台 600HP 发动机,额定转速 1800rpm,齿轮箱速比 3:1,计划使用的最大转速为 1400~1500rpm,轴锥度和轴径暂未提供.

After reviewing these parameters, we found a configuration problem: when purchasing the engine and gearbox, the customer did not clearly communicate the boat's actual usage to the design institute or a professional, which led to a mismatch between the propulsion configuration and the boat's intended purpose. An 1800rpm engine paired with a 3.0:1 ratio means the torque and thrust output are insufficient for the cargo boat to achieve better operational efficiency - it only runs fast when empty, but struggles to move when fully loaded, so the expected fuel savings are simply out of reach.

拿到这套参数后,我们判断这条船的配置存在问题：客户在购买发动机和齿轮箱时,没有把船的实际用途向设计院或专业人员表达清楚,导致动力配置与船体目标用途不匹配.1800rpm 的发动机搭配 3.0:1 速比,输出的扭矩和推力不足以让货船获得更好的经济效益 -- 空载时还能跑得快,一旦重载就跑不动了,根本达不到节省燃油的效果.

Our recommendation is to change the gearbox ratio to 3.5:1 or 4:1, so the propeller gets a more reasonable torque match and the boat's thrust improves noticeably. Combined with a propeller designed by ChenLifa, the fuel economy will be even better. Of course, to deliver a precise custom design, we still need the customer to provide key parameters such as shaft diameter and hull drawings.

因此我们建议将速比更换为 3.5:1 或 4:1,让螺旋桨获得更合理的扭矩匹配,船的推进力会明显改善,再配合陈利发设计的螺旋桨,节油效果会更出色.当然,要做精准的定制设计,还需客户补充轴径,船型图纸等关键参数.

ChenLifa has specialized in propeller manufacturing for 24 years, focusing on the selection, matching, and custom production of marine propulsion systems. We often tell boat owners: a good boat is seventy percent about matching. The engine, gearbox, and propeller must work as a whole - only then will the boat run strong, fast, and economical. Guided by this philosophy, we always "calculate the match first, then finalize the solution": based on the hull type, deadweight, speed, and target thrust, we help customers work out the right horsepower and gearbox ratio, and then design a propeller and tail shaft to match. From selection and design to production and delivery, we provide full technical support.

陈利发专注螺旋桨制造 24 年,始终深耕船用推进系统的选型,匹配与定制生产.我们最常跟船东说的一句话是：好船七分靠配.发动机,齿轮箱,螺旋桨必须整体匹配,船才能跑得动,跑得快,跑得省.基于这个理念,我们坚持 "先算匹配,再定方案"：先根据船型,载重,转速和目标推力,帮客户算清该配多大马力,多少速比,再量身设计与之匹配的螺旋桨和艉轴,从选型,设计到生产,交付,全流程提供专业技术支持.

24 years of experience enable us to quickly spot hidden issues in a configuration and give clear optimization directions - just as we did in this case, identifying the crux of an 1800rpm engine paired with a 3:1 ratio at a glance. Our propellers are designed with "fuel-efficient and high-performance" as the core goal; combined with proper ratio adjustment, cargo boats maintain good thrust and fuel economy even under heavy-load conditions. Meanwhile, we have export delivery experience and can take on overseas orders (such as this Ethiopia project), following through from technical communication to production and shipment, so customers can rest easy.

24 年的经验积累,让我们能快速识别配置中的隐患,给出明确的优化方向 -- 就像本次案例中,一眼看出 1800rpm 配 3:1 速比的症结所在.我们设计的螺旋桨以 "节油高效" 为核心目标,配合合理的速比调整,让货船在重载工况下依然保持良好推力与燃油经济性.同时,我们具备出口交付经验,可承接海外客户的配套订单(如本次的埃塞俄比亚项目),从技术沟通到生产出运全程跟进,让客户省心省力.

Whether you are a new boat owner in the selection stage, or an experienced one troubled by "the boat doesn't run fast enough and fuel consumption is too high", you are welcome to consult ChenLifa anytime - with 24 years of professional experience, we'll help you match every step: horsepower, ratio, and propeller.

无论你是正在选型的新船东,还是正被 "船跑不快,油耗偏高" 困扰的老船东,都欢迎随时咨询陈利发--24 年专业经验,帮你把马力,速比,螺旋桨每一步都配对.
